产品中心 / 中冷器
产品与结构细节

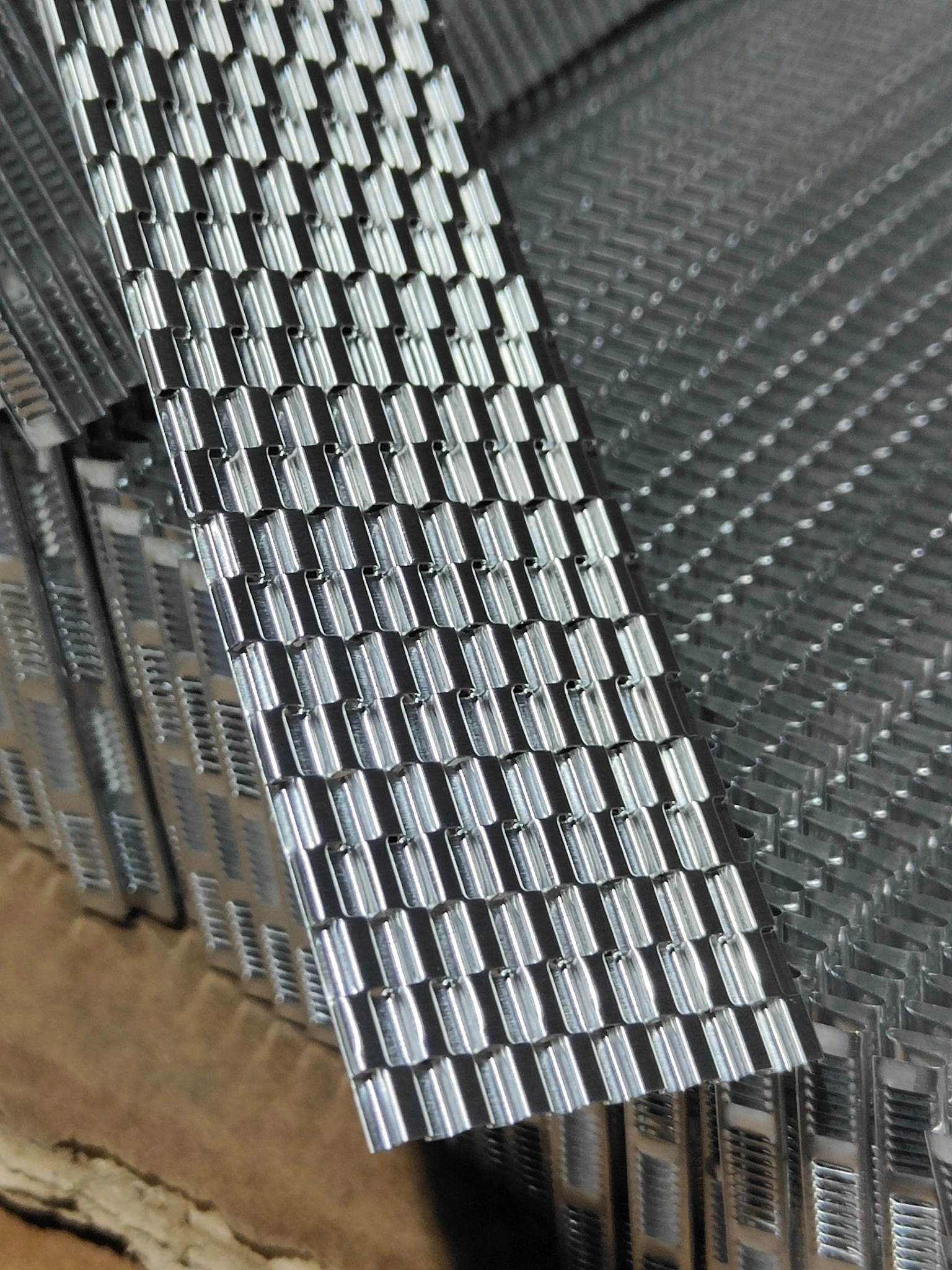

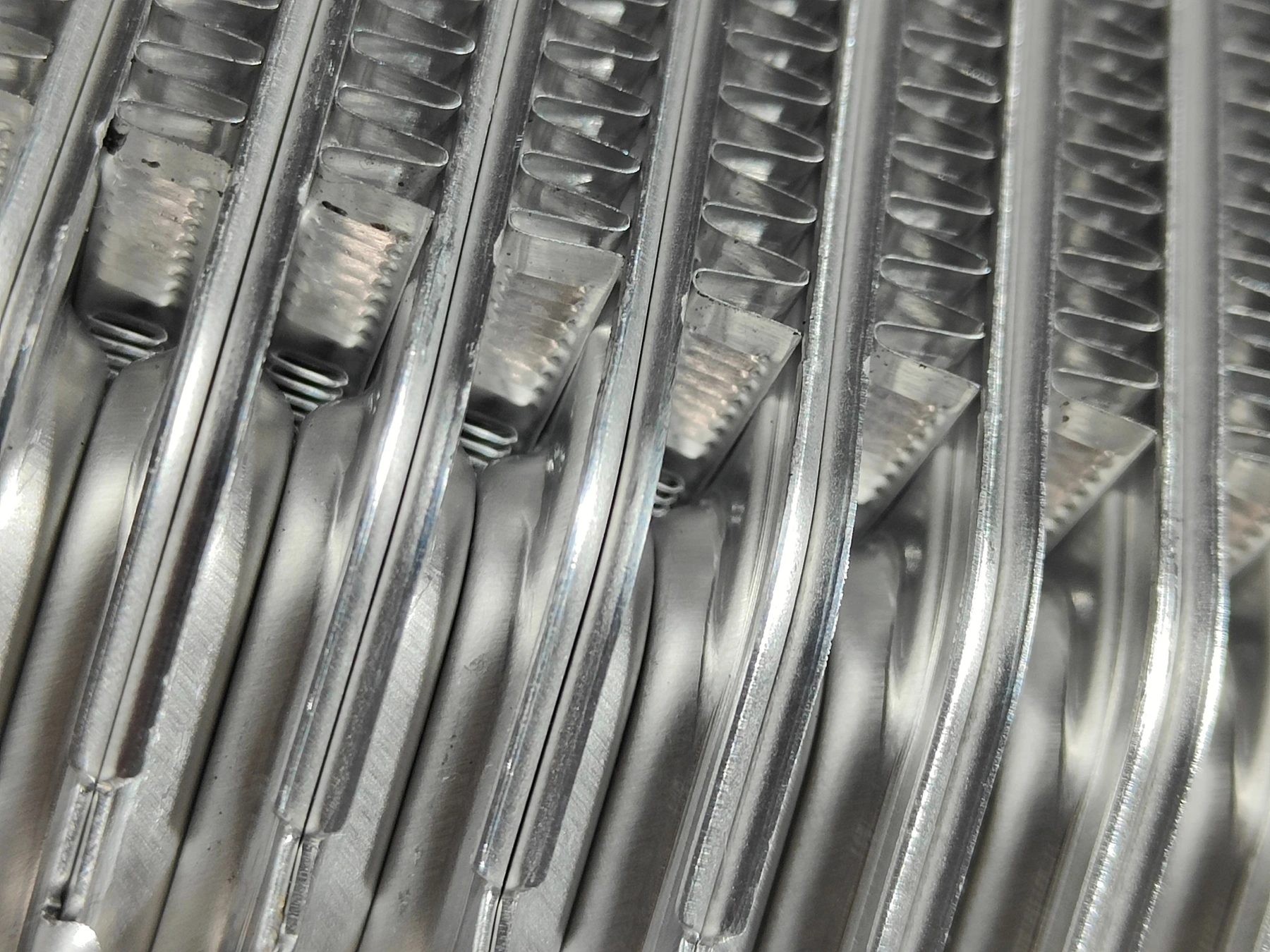

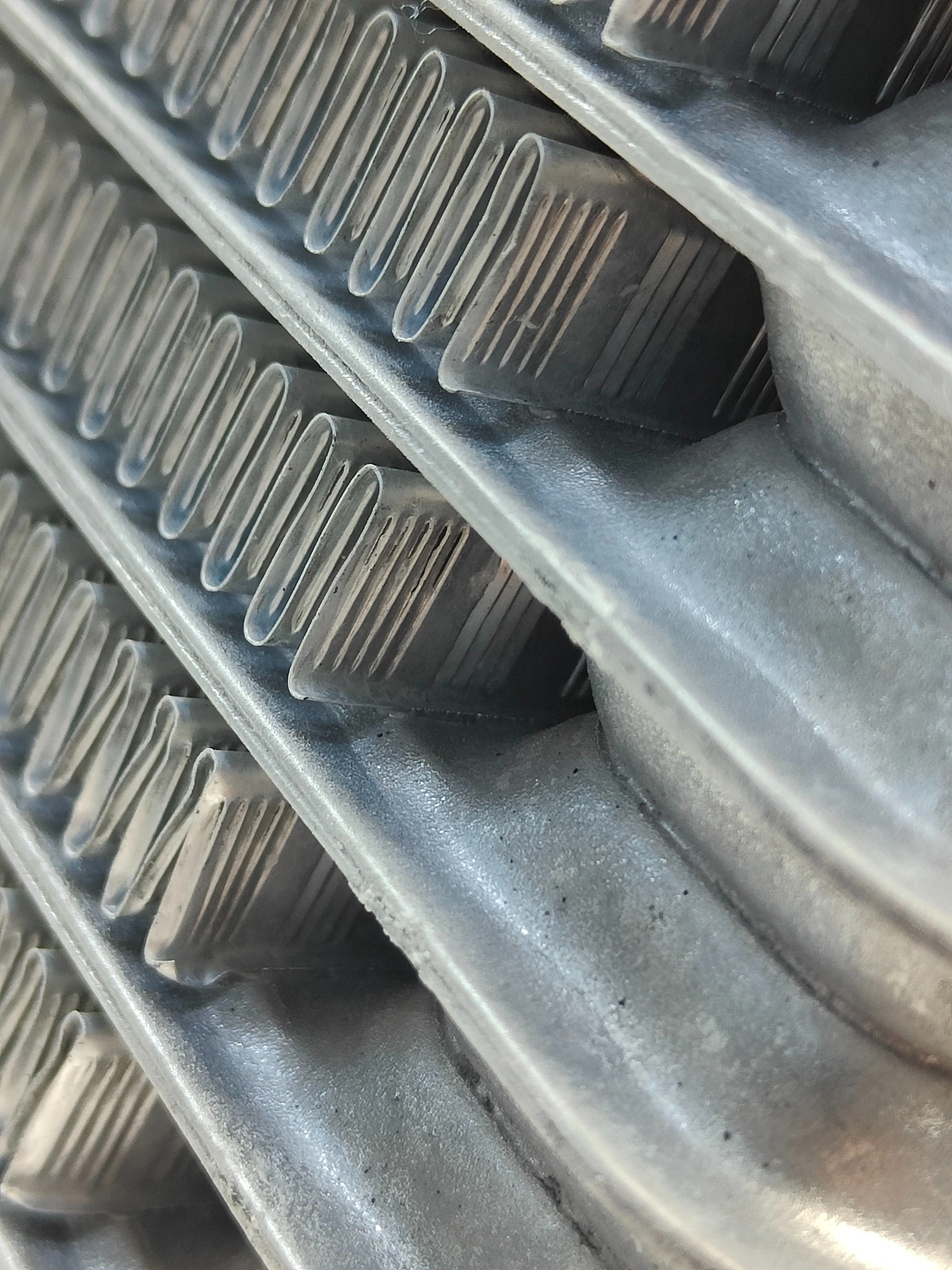

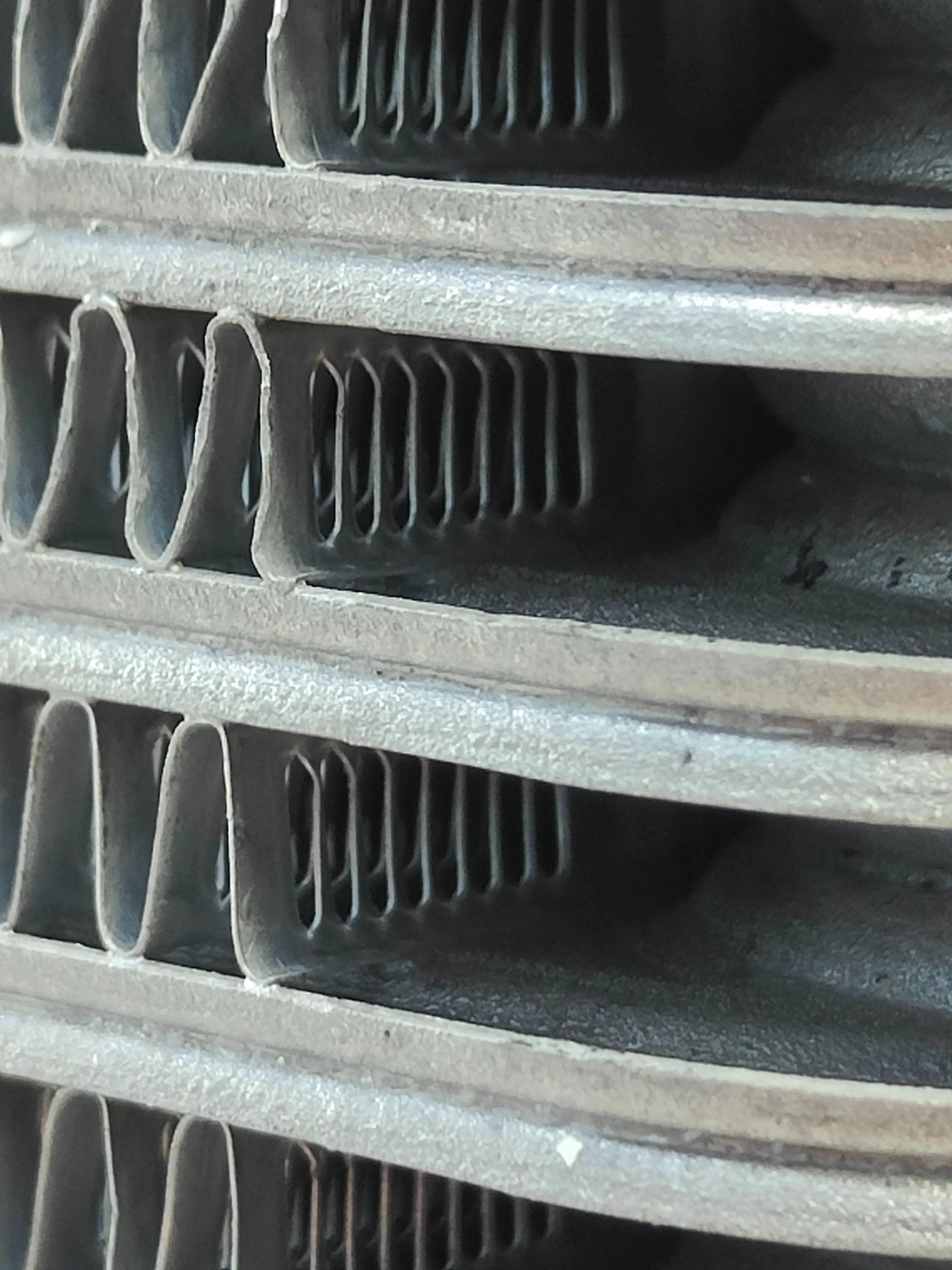

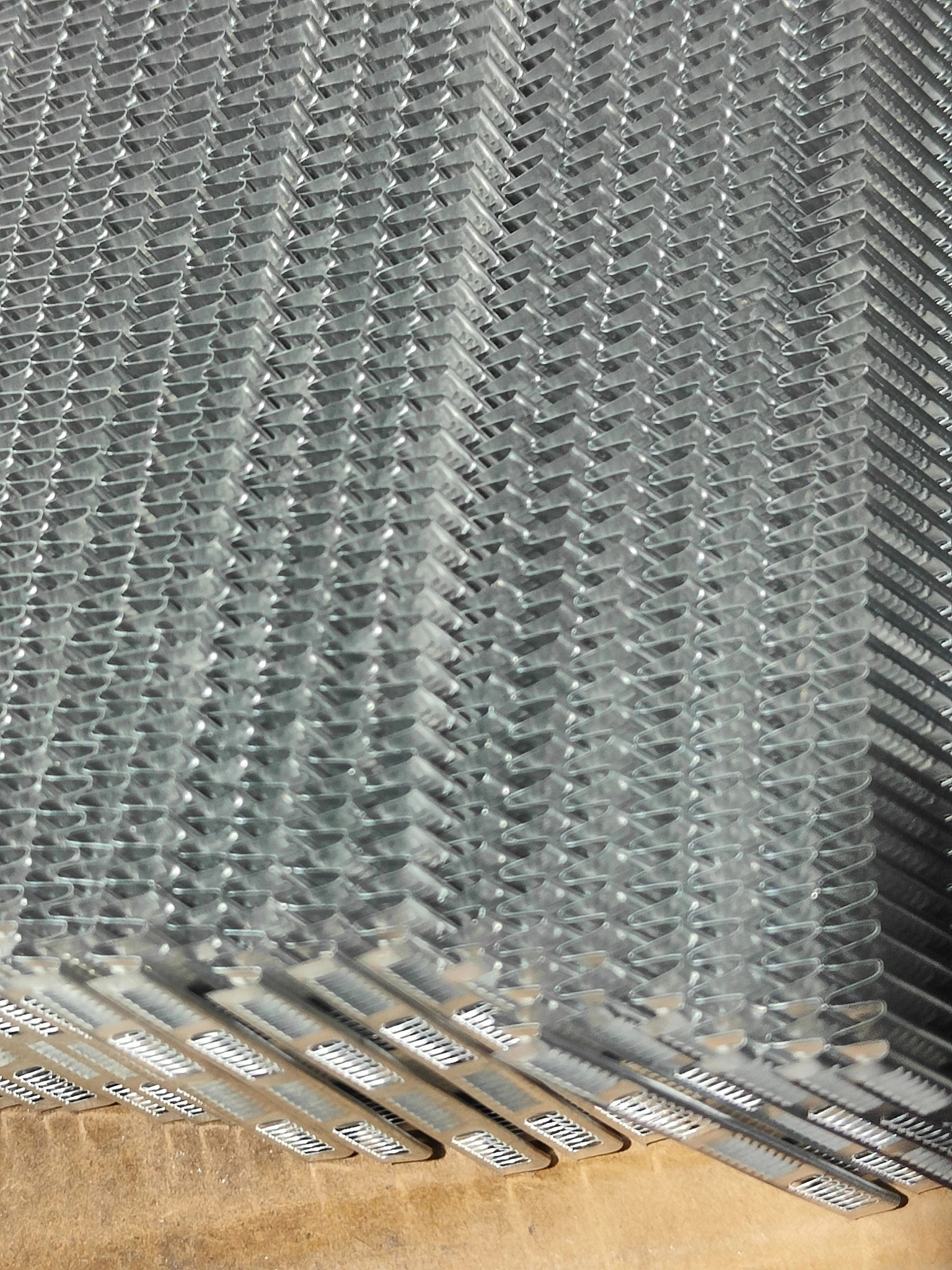

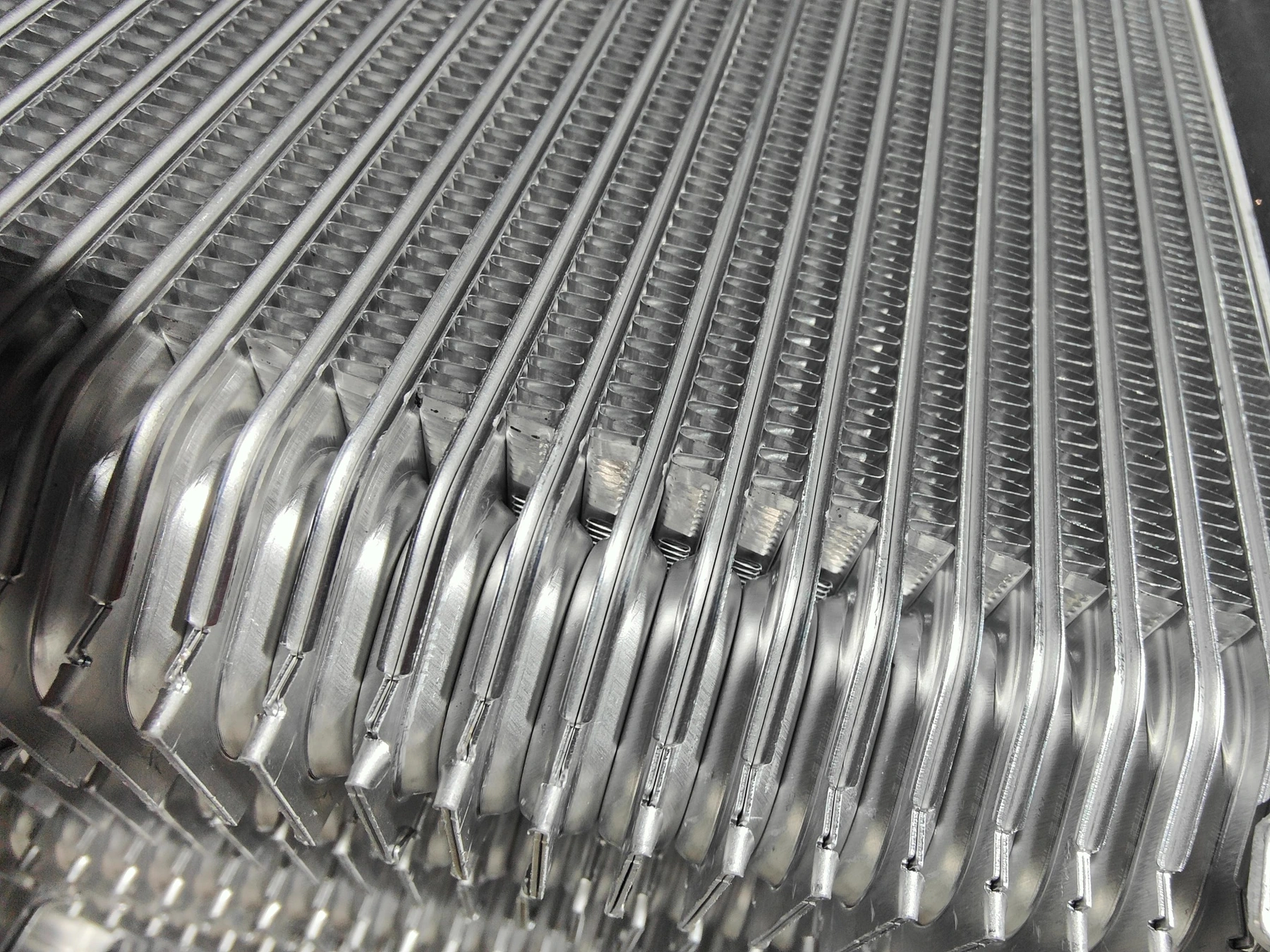

实物照片 / 多角度展示
适配与参数参考
| Reference | Dimension | 参数 |
|---|---|---|
| A | Matrix width | 115 mm |
| B | Overall bracket width | 210 mm |
| C | Mounting-hole center distance | 188 mm |
| D | Fluid-port center distance | 128 mm |
| E | Mounting-hole center spacing | 22 mm |
| F | Mounting-bracket edge dimension | 41.4 mm |
| G | Matrix depth | 51 mm |
| H | Matrix height | See row-height table below |
| Rows | 芯体 height (mm) | Reference oil capacity (L) | Reference dry weight (kg) |
|---|---|---|---|
| 7 | 53 | 0.08 | 0.31 |
| 10 | 77 | 0.12 | 0.39 |
| 13 | 100 | 0.16 | 0.48 |
| 16 | 124 | 0.19 | 0.60 |
| 19 | 147 | 0.23 | 0.67 |
| 25 | 194 | 0.30 | 0.84 |
| 34 | 265 | 0.41 | 1.15 |
| 44 | 344 | 0.53 | 1.46 |
| 50 | 390 | 0.60 | 1.63 |
| 60 | 460 | — | — |
